Wine Cellar Cooling Unit Ducted Platinum Split 4000 H.E. - WhisperKOOL

WINE CELLAR COOLING UNIT PLATINUM 4000 DUCTED HIGH EFFICIENCY

• This two-component system has the capacity to cool a cellar of up to 1000 ft³*
• The Cooling Unit ( Evaporator ) is quiet and efficient
• Digital control keypad. ( System alerts when desired set points are not met )
• Precise electronic temperature control (probe in bottle reading liquid temperature )
• 2-speed fan. ( Dispersion power mode when required and quiet in normal operation )
• Conversion kit for 24v Wi-Fi thermostat ( Available on request )
• Front grille with replaceable air filter
• Humidity control

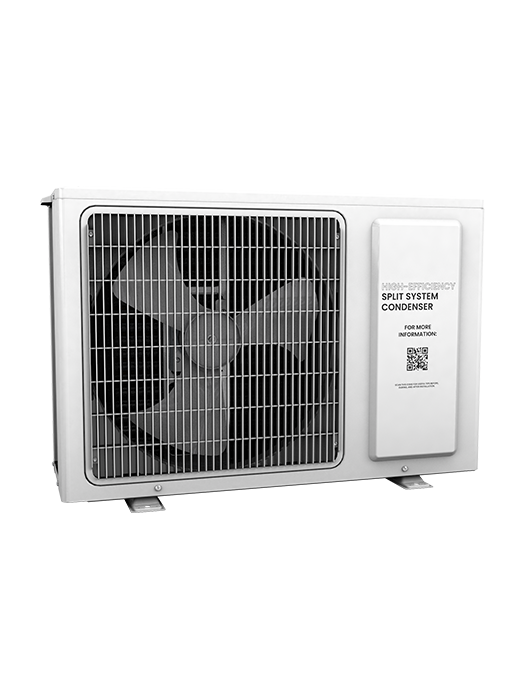

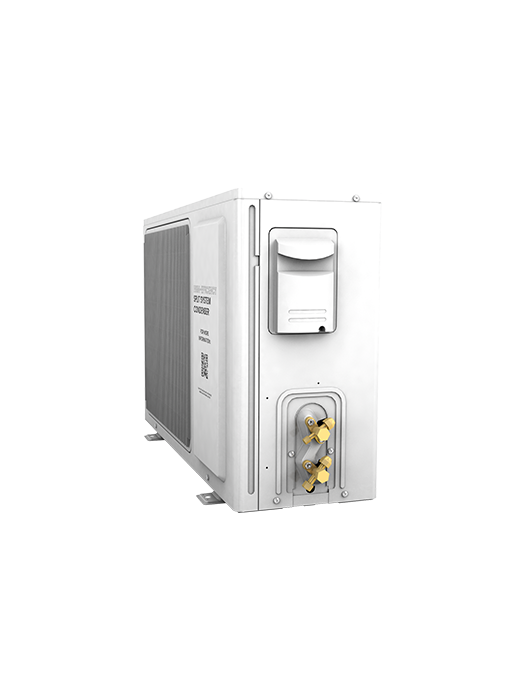

• Condenser Unit ( Compressor ) operating on 220 volts.
• The Condenser Unit is designed to be installed indoors, but can also be installed outdoors thanks to a specially designed housing.
• Flexible installation ( Up to 100 feet distance between cellar chiller and condenser unit )
• Quick-connect system ( requires specialized technician )
• Up to 55°F temperature differential

2 year warranty, parts and labor
Consult PDF for more information

Platinum Series ducted by WhisperKOOL

Those powerful systems from WhisperKOOL are made for an efficient Split AND Fully Ducted installation. For wine cellars  from 1000 to 2000 cu. ft, the system is designed for Powerful Operation, Efficiency, High Reliability and Longevity. The units can be positioned up to 25 ducted feet from the cellar with the compressor located in a remote location, creating a noise-free cellar environment. Fully ducted installation provides many installation options, allowing you to put the the evaporator (cold side) in more remote areas of the home. A licensed HVAC or refrigeration technician is required for the installation.

Ducted systems can be Self-Contained or Split systems and typically have more installation options/flexibility. The unit may be installed up to 25 ducted feet from the cellar, with the cool air flowing to the cellar and the heat exhaust ducted to the outside of the home. Ducting is also a more aesthetic choice for wine collectors who do not want to see a cooling unit in the cellar. Noise from the unit will be reduced or eliminated, depending on the installation.

Split systems are often the most efficient way to cool a cellar. Cooling unit condensers High efficiency 220volts are typically noisy and require significant space for ventilation, in most cases the cellar location does not include an area for these functions. By splitting the cooling system, the condenser can be placed in a space better suited for heat and noise dissipation while the quiet evaporator is inside, or near, the cellar. A licensed HVAC/R technician is required for the installation.

*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
