Wine cellar cooling unit for a volume up to 20m3/600 cubic feet) Requires 110v/15amp (wall insulation at R22 minimum, does not adapt to glass spaces)
The SMARTER way to protect your wine with the KoolR and KoolR Plus Systems. Conveniently monitor temperatures outside your wine cellar with our lighted display. Let our super smart controls sense conditions in your room and adjust the power levels automatically. Sleek silver grille to streamline any install. Our unit will run as quietly as your conditions allow. Precise temperature and higher humidity levels.
Dimensions : 39cm X 41.5cm X 24.5cm / 15.5p X 16.25p X 9.5p
See the folder Documentation for the installation dimensions
The Wine-R is the newest wine cellar cooling unit created in Quebec. It combines efficiency and durability at an affordable price.
- Cooling capacity of up to 650 cubic feet*
- Compact size for easy installation
- Quiet and discreet operation
- Elegantly blends into the space with its black grille finish
- Easy to use with a wired digital thermostat
- Lightweight and easy to handle, weighing only 45 pounds - 21 kg
- Temperature range of 10° to 25° Celsius, adjustable to your preference
- 2 year parts and labor warranty
- Stainless steel grid available
* Heat load calculation varies depending on several factors. Contact our team for an evaluation of your project.
WINE CELLAR COOLING UNIT SLIMLINE LS BY WHISPERKOOL
The WhisperKOOL Slimline LS is a very compact, through-the-wall monoblock cooling unit ideal for bulkhead installation.
This unit is considered the best in its class, regardless of brand.
The dimensions allow for discreet installation above the wine cellar door (21.5 “W x 22.16 ‘D x 10.33 ’H ).
- Cooling capacity of 650 cu. ft. (300 cu. ft. at low speed)*
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 4,2
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
Wine Cellar Cooling Unit Slimline LS Refurbished - WhisperKOOL
Wine Cellar Cooling Unit Slimline LS Refurbished - WhisperKOOL
WINE CELLAR COOLING UNIT SLIMLINE LS BY WHISPERKOOL
REFURBISHED, LIMITED QUANTITY
The WhisperKOOL Slimline LS is a very compact, through-the-wall monoblock cooling unit ideal for bulkhead installation.
This unit is considered the best in its class, regardless of brand.
The dimensions allow for discreet installation above the wine cellar door (21.5 “W x 22.16 ‘D x 10.33 ’H ).
- Cooling capacity of 650 cu. ft. (300 cu. ft. at low speed)*
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 4,2
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
The Through-the-Wall (TTW) wine cellar cooling Unit from Wine Guardian offers a contemporary design that will match the unique style of today’s modern wine cellar. This small wine cooling unit is perfect for small to mid-sized cellars. This innovative system offers exceptional airflow and maintains optimal temperature and humidity with the quietest operation in its class.
SPECIFICATION
- Performance: 1,100 BTU
- Capacity: 850 cu. ft.*
- Dimensions (Length x Width x Height): 25’’ x 14 ¼’’ x 15 7/8’’
- Opening Dimensions (Width x Height): 14 ½’’ x 16 ¼’’
- Heating Element: Optional (500 watt heating element allows to protect your cellar from low ambient temperatures)
- Service Temperature: Optional (different setting that allows a wider range of temperature - 6 to 18ºC)
- Weight: 60 pounds
- Noise Levels: 55 dB
- Warranty: 2 years (parts and labor)
* This specification is only to be used as reference point. It is important to ask your in-store advisor to calculate the heat load specific to your room in order to recommend the right cooling unit.
Standard features of this Wine Guardian® unit:
- Quiet and efficient operation
- Wine Guardian® TTW Systems can directly replace most competitors through-the-wall models. See your distributor for details.
- Controls for the adjustable fan (on/auto/off)
- The only TTW system that displays both temperature and humidity and controls temperature
- EasyMount™ one-piece wall bracket and support frame included
- Commercial-grade, corrosion resistant components long-term durability
- Can be mounted flush with the wallor racking
WINE CELLAR COOLING UNIT SC PRO 4000 BY WHISPERKOOL
- Cooling capacity of 1000 cu. ft.
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 4,9
Consult PDF for more information.
Warranty: 2 years parts and labor, 5 years compressor
SC Series by WhisperKOOL
The SC Series come in 5 models that effectively cool a 300 to 2000 cu. ft. properly insulated environment. Designed for simple through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC has a 30°F temperature differential. In order to keep your cellar at 55°F, the area the unit exhausts into should not exceed 85°F.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT SC PRO 3000 BY WHISPERKOOL
- Cooling capacity of 650 cu. ft.*
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 4,2
Consult PDF for more information.
Warranty: 2 years parts and labor, 5 years compressor
SC Series by WhisperKOOL
The SC Series come in 5 models that effectively cool a 300 to 2000 cu. ft. properly insulated environment. Designed for simple through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC has a 30°F temperature differential. In order to keep your cellar at 55°F, the area the unit exhausts into should not exceed 85°F.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT SC PRO 3000 BY WHISPERKOOL
- Cooling capacity of 650 cu. ft.*
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 4,2
Consult PDF for more information.
Warranty: 2 years parts and labor, 5 years compressor
SC Series by WhisperKOOL
The SC Series come in 5 models that effectively cool a 300 to 2000 cu. ft. properly insulated environment. Designed for simple through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC has a 30°F temperature differential. In order to keep your cellar at 55°F, the area the unit exhausts into should not exceed 85°F.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT SC PRO 4000 BY WHISPERKOOL
- Cooling capacity of 1000 cu. ft.
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 4,9
Consult PDF for more information.
Warranty: 2 years parts and labor, 5 years compressor
SC Series by WhisperKOOL
The SC Series come in 5 models that effectively cool a 300 to 2000 cu. ft. properly insulated environment. Designed for simple through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC has a 30°F temperature differential. In order to keep your cellar at 55°F, the area the unit exhausts into should not exceed 85°F.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT EXTREME 8000 TIR BY WHISPERKOOL
- Cooling capacity of 2000 cu. ft.*
- Through-the-wall application
- KDT Plus remote control and thermostat (can be installed outside the cellar)
- Variable speed fans
- Operates in extreme environments
- Simple installation – between wall studs
- Liquid bottle probe
- Energy saving mode
- 55°F temperature differential
Warranty: 2 years parts and labor, 5 years compressor
Consult PDF for more information.
Extreme Series by WhisperKOOL
Years of experience working within the wine cellar industry have inspired them to create a design capable of overcoming a range of installation challenges which limit the performance and longevity of a traditional cooling unit. Welcome to the Extreme Series – their highest end, professional grade cooling unit utilizing state of the art, high quality components. The system is designed for Powerful Operation, Efficiency, High Reliability and Longevity with excellent performance in a wide range of working environments.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT EXTREME 5000 TIR BY WHISPERKOOL
- Cooling capacity of 1250 cu. ft.*
- Through-the-wall application
- KDT Plus remote control and thermostat (can be installed outside the cellar)
- Variable speed fans
- Operates in extreme environments
- Simple installation – between wall studs
- Liquid bottle probe
- Energy saving mode
- 55°F temperature differential
Warranty: 2 years parts and labor, 5 years compressor
Consult PDF for more information.
Extreme Series by WhisperKOOL
Years of experience working within the wine cellar industry have inspired them to create a design capable of overcoming a range of installation challenges which limit the performance and longevity of a traditional cooling unit. Welcome to the Extreme Series – their highest end, professional grade cooling unit utilizing state of the art, high quality components. The system is designed for Powerful Operation, Efficiency, High Reliability and Longevity with excellent performance in a wide range of working environments.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.

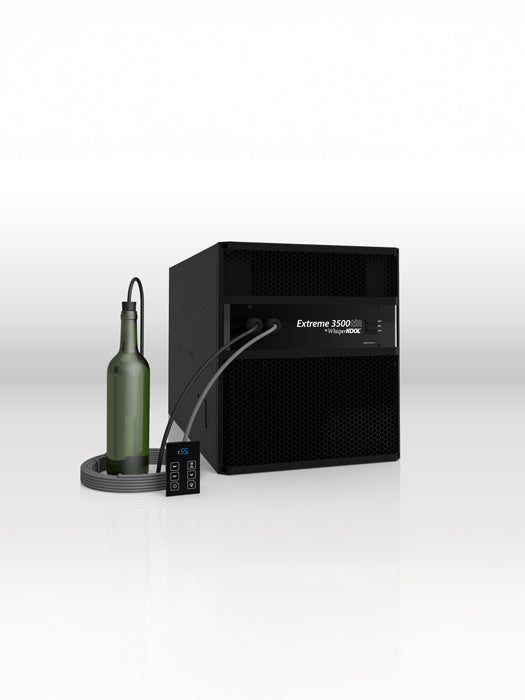

WINE CELLAR COOLING UNIT EXTREME 3500TI BY WHISPERKOOL
- Cooling capacity of 800 cu. ft.*
- Through-the-wall application
- KDT Plus remote control and thermostat (can be installed outside the cellar)
- Variable speed fans
- Operates in extreme environments
- Simple installation – between wall studs
- Liquid bottle probe
- Energy saving mode
- 55°F temperature differential
Warranty: 2 years parts and labor, 5 years compressor
Consult PDF for more information.
Extreme Series by WhisperKOOL
Years of experience working within the wine cellar industry have inspired them to create a design capable of overcoming a range of installation challenges which limit the performance and longevity of a traditional cooling unit. Welcome to the Extreme Series – their highest end, professional grade cooling unit utilizing state of the art, high quality components. The system is designed for Powerful Operation, Efficiency, High Reliability and Longevity with excellent performance in a wide range of working environments.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT SC PRO 2000 BY WHISPERKOOL
- Cooling capacity of 300 cu. ft.*
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Option vent available
- Continuous amperage: 4,2
Consult PDF for more information.
Warranty: 2 years parts and labor, 5 years compressor
SC Series by WhisperKOOL
The SC Series come in 5 models that effectively cool a 300 to 2000 cu. ft. properly insulated environment. Designed for simple through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC has a 30°F temperature differential. In order to keep your cellar at 55°F, the area the unit exhausts into should not exceed 85°F.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
Part of the ''built-in'' family of wine cellar compressors, the C-25 compressor is installed through the wall and transforms any well-insulated room in a real wine cellar. In addition to its innovative design, this unit benefits from a high performance technology resulting in important energy efficiency and silent functionning.
Caracteristics
- Maintains a steady temperature in the wine cellar between 8 and 18°C / 46°F to 64°F
- Stabilized humidity: condensation of excess and evacuation of humidity outside of the wine cellar
- Anti-vibration system: elements put on rubber shock absorbers
- Dimensions of the unit allows for installation in different rooms (cellar, attic, etc)
- Energy consumption controled by the reaction turbine on the condensor side
- Easy to install, with a wooden frame included
- Easy-care with a filter to change at least once a year
- 2-year warranty
Advantages
- Grainy aspect of the facade and print for a high-end finish
- 2-speed rotation ventilation for the wine cellar side
- Fan equipped with ''Energy Saver Motor'' technology
- Very quiet functionning thanks to the use of new materials in the construction
|
REFERENCE |
C25 |
|
Power supply |
120 V -15 Amp |
|
Cooling capacity |
Up to 25 m3 / 800 pi3 |
|
Dimensions |
L 540mm x D 524mm x H 381mm L 21.3po x D 20.6po x H 15po |
|
Weight |
31 kg / 68.3 lbs |
|
Refrigerating power |
550 W at 15°C / 59°F |
|
Absorbed electrical power |
400 W |
|
Sound level (at 1m and 3m distance) |
45 dB / 40 dB |
|
Air flow inside (cold side) |
96 to 198 m3/h |
|
Air flow outside (warm side) |
179 m3/h |
|
Cooling fluid |
R404 A |
|
Temperature range |
Preset at 12°C, adjustable between 8°C and 18°C / 46°F to 64°F |
|
Maximum outside temperature |
35°C / 95°F |
Through-the-wall compressor TTW02B Sentinel – Wine Guardian
From $7,534.00
Unit price perThrough-the-wall compressor TTW02B Sentinel – Wine Guardian
From $7,534.00
Unit price perThe Through-the-Wall (TTW) wine cellar cooling Unit from Wine Guardian offers a contemporary design that will match the unique style of today’s modern wine cellar. This small wine cooling unit is perfect for small to mid-sized cellars. This innovative system offers exceptional airflow and maintains optimal temperature and humidity with the quietest operation in its class.
CHARACTERISTICS
- Performance: 2,200 BTU
- Capacity: 1500 cu. ft.*
- Dimensions (Length x Width x Height): 25’’ x 14 ¼’’ x 15 7/8’’
- Opening Dimensions (Width x Height): 14 ½’’ x 16 ¼’’
- Heating Element: Optional (500 watt heating element allows to protect your cellar from low ambient temperatures)
- Service Temperature: Optional (different setting that allows a wider range of temperature - 6 to 18ºC)
- Weight: 62pounds
- Noise Levels: 58dB
- Warranty: 2 years (parts and labor)
- This specification is only to be used as reference point. It is important to ask your in-store advisor to calculate the heat load specific to your room in order to recommend the right cooling unit.
Standard features of this Wine Guardian® unit:
- Quiet and efficient operation
- Wine Guardian® TTW Systems can directly replace most competitors through-the-wall models. See your distributor for details.
- Controls for the adjustable fan (on/auto/off)
- The only TTW system that displays both temperature and humidity and controls temperature
- EasyMount™ one-piece wall bracket and support frame included
- Commercial-grade, corrosion resistant components long-term durability
- Can be mounted flush with the wallor racking
WINE CELLAR COOLING UNIT EXTREME 8000TI BY WHISPERKOOL
- Cooling capacity of 2000 cu. ft.*
- Through-the-wall application
- Variable speed fans
- Operates in extreme environments
- Simple installation – between wall studs
- Advanced electronic control system
- Liquid bottle probe
- Energy saving mode
- 55°F temperature differential
Warranty: 2 years parts and labor, 5 years compressor
Consult PDF for more information.
Extreme Series by WhisperKOOL
Years of experience working within the wine cellar industry have inspired them to create a design capable of overcoming a range of installation challenges which limit the performance and longevity of a traditional cooling unit. Welcome to the Extreme Series – their highest end, professional grade cooling unit utilizing state of the art, high quality components. The system is designed for Powerful Operation, Efficiency, High Reliability and Longevity with excellent performance in a wide range of working environments.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT EXTREME 5000 TI BY WHISPERKOOL
- Cooling capacity of 1250 cu. ft.*
- Through-the-wall application
- Variable speed fans
- Operates in extreme environments
- Simple installation – between wall studs
- Advanced electronic control system
- Liquid bottle probe
- Energy saving mode
- 55°F temperature differential
Consult PDF for more information.
Warranty: 2 years parts and labor, 5 years compressor
Extreme Series by WhisperKOOL
Years of experience working within the wine cellar industry have inspired them to create a design capable of overcoming a range of installation challenges which limit the performance and longevity of a traditional cooling unit. Welcome to the Extreme Series – their highest end, professional grade cooling unit utilizing state of the art, high quality components. The system is designed for Powerful Operation, Efficiency, High Reliability and Longevity with excellent performance in a wide range of working environments.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT EXTREME 3500TI BY WHISPERKOOL
- Cooling capacity of 800 cu. ft.*
- Through-the-wall application
- Variable speed fans
- Operates in extreme environments
- Simple installation
- Advanced electronic control system
- Liquid bottle probe
- Humidity control 60 – 70%
- Energy saving mode
- 55°F temperature differential
Warranty: 2 years parts and labor, 5 years compressor
Consult PDF for more information.
Extreme Series by WhisperKOOL
Years of experience working within the wine cellar industry have inspired them to create a design capable of overcoming a range of installation challenges which limit the performance and longevity of a traditional cooling unit. Welcome to the Extreme Series – their highest end, professional grade cooling unit utilizing state of the art, high quality components. The system is designed for Powerful Operation, Efficiency, High Reliability and Longevity with excellent performance in a wide range of working environments.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
WINE CELLAR COOLING UNIT SC PRO 8000 BY WHISPERKOOL
- Wine cellar Cooling capacity of 2000 cu. ft.*
- Digital control display
- Advanced electronic temperature control
- Dynamic airflow
- Liquid bottle probe
- Alarm in case of significant temperature changes
- Through-the-wall installation, partially ducted
- Up to 30°F/16°C temperature differential
- Continuous amperage: 10.3
Consult PDF for more information. Warranty: 2 years parts and labor, 5 years compressor
SC Series by WhisperKOOL
The SC Series come in 5 models that effectively cool a 300 to 2000 cu. ft. properly insulated environment. Designed for simple through-the-wall installation, the unit fits between standard wall studs and a single piece mounting bracket eliminates the need for a support shelf. The SC has a 30°F temperature differential. In order to keep your cellar at 55°F, the area the unit exhausts into should not exceed 85°F.
Self Contained systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall, and they do not require a licensed HVAC/R installation technician. One end of the system blows cool air in to the cellar, and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar. Self-contained units will make more noise than a split or ducted system.
The unit must be connected to a condensate drain located on the inside of the cellar.
The 110-volt electrical connection on a preferably dedicated 15-amp circuit is made inside the cellar.
*When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit.
