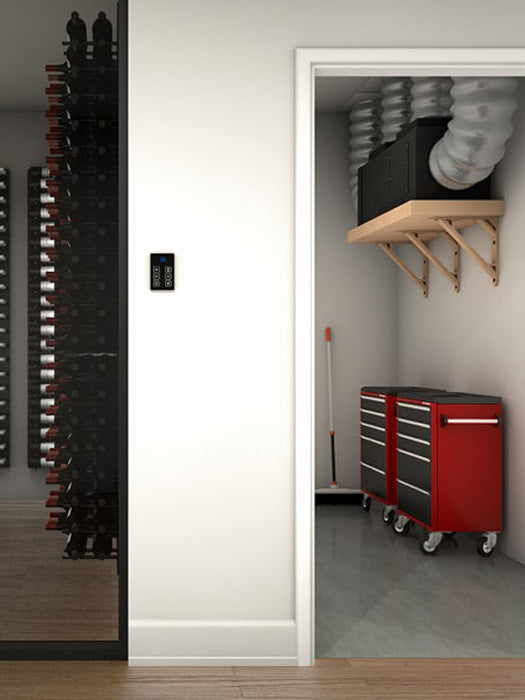

Split Cooling System (Ducted)

The Panthaire APEX unit is your high-performance solution for wine cellars of all sizes. Designed in Canada and rigorously tested, this unit provides constant temperature control for spaces up to 2,000 cubic feet.

The Panthaire APEX series is available in three versions, offering cooling capacities ranging from 3,353 to 6,346 BTU.

Features:

• Quick connection
• Temperature range from 10°C to 25°C
• Maximum 25-foot duct
• Digital temperature control
• Quiet operation (52 DB)
• Compatible with different sizes of wine cellars
• 2-year warranty on parts and labor

See the technical data sheet in the documentation tab for details.

*When the cellar is fully insulated and sealed with an appropriate vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed before selecting a cooling unit). Contact our team of professionals for guidance in making your selection.

The D025 is a ducted wine cellar cooling unit for small residential and commercial wine cellars. The D025 is the best wine cellar cooling unit for cellars from 400 to 2,000 cubic feet, depending upon use and room construction.

CHARACTERISTICS

• Performance : 3,000 BTH/h
• Capacity : 400 cu. ft. to 2,000 cu. ft. *
• Dimensions (Length x Width x Height) : 33’’ x 14’’ x 14’’
• Heating Element : Optional (1000 watt heating element allows to protect your cellar from low ambient temperatures)
• Cooling temperature from 10 degrees to 15 degrees for basic models (cooling temperature from 8 degrees to 16 degrees for models with service temperature)
• Air Flow : 245 CFM
• Drain : ½’’ flexible
• Ducks : 8’’ isolated
• Weight : 80 pounds
• Electrical : Dedicated circuit of 20 amps 115v/1ph/60Hz
• Certification : UL 1995 & CSA C22.2
• Warranty : 1 year (Parts et Labor) + 1 year (Parts)
• Includes :
  • 1 x Remote control combo temperature + humidity
  • 1 x Air input junction ring
  • 1 x Air output junction ring

* This specification is only to be used as reference point. It is important to ask your in-store advisor to calculate the heat load specific to your room in order to recommend the right cooling unit.

Standard features of this Wine Guardian® unit:

• Removable control panel for easy access
• Multiple supply-air openings for installation flexibility
• High static pressure fans for extended lengths of ductwork
• Creates virtually no noise in cellar
• Lightweight, corrosion resistant, all aluminum outer body
• Remote user interface control system
• Most energy-efficient unit on the market
• Unit is located outside the wine cellar
• Better air distribution and temperature control than through-the-wall or ductless split systems
• Easier to service
• No visible mechanical equipment in the wine cellar

The D050 is a ducted wine cellar cooling unit for small residential and commercial wine cellars. The D050 is the best wine cellar cooling unit for cellars from 800 to 3,000 cubic feet, depending upon use and room construction.

CHARACTERISTICS

• Performance : 5,500 BTH/h
• Capacity : 800 cu. ft. to 3,000 cu. ft. *
• Dimensions (Length x Width x Height) : 33’’ x 22’’ x 14’’
• Heating Element : Optional (1000 watt heating element allows to protect your cellar from low ambient temperatures)
• Air Flow : 390 CFM
• Drain : ½’’ flexible
• Ducks : 10’’ isolated
• Weight : 125 pounds
• Electrical : Dedicated circuit of 20 amps 115v/1ph/60Hz
• Certification : UL 1995 & CSA C22.2
• Warranty : 1 year (Parts et Labor) + 1 year (Parts)
• Includes :

  • 1 x Remote control combo temperature + humidity
  • 1 x Air input junction ring
  • 1 x Air output junction ring

*This specification is only to be used as reference point. It is important to ask your in-store advisor to calculate the heat load specific to your room in order to recommend the right cooling unit.

Standard features of this Wine Guardian® unit:

• Removable control panel for easy access
• Multiple supply-air openings for installation flexibility
• High static pressure fans for extended lengths of ductwork
• Creates virtually no noise in cellar
• Lightweight, corrosion resistant, all aluminum outer body
• Remote user interface control system
• Most energy-efficient unit on the market
• Unit is located outside the wine cellar
• Better air distribution and temperature control than through-the-wall or ductless split systems
• Easier to service
• No visible mechanical equipment in the wine cellar
